Sanderay Geosynthetic clay liner-RNP

Sanderay^®GCL-RNP, Which is four layer GCL, The carrier layer is used woven and nonwoven composite fabric to replace single woven carrier(Figure 3.3). This type GCL would reinforce internal shear strength, which could be used in steep slope greater than 1V:3H, and made the waterproof layer structure more stable. The bentonite couldn’t flee from the sandwich structure in GCL hydrated situation

Technical data sheet:

Material property		Unit	Required Value
GEOTEXTILE PROTECTION LAYER	PP non-woven white	g/m²	220	ENSO9864 or ASTMD5261
GEOTEXTILE CARRIER LAYER	PP slit film woven	g/m²	110
	PP non-woven white	g/m²	210
	Composite	g/m²	320
BENTONITE LAYER	Sodium Bentonite	g/m²	≥3700	ASTM D5993
	Fluid Loss	ml	≤16	ASTM D5891
	Swell Index	ml/2g	≥24	ASTM D5890
MASS PER UNIT AREA	GCL	g/m²	4650	ASTM D5993
BONDING PROCESS		Fully Needle-punched
GRAB STRENGTH	MACHINE	kN/m	10	ASTM D4623
	ACROSS	kN/m	12
PEEL STRENGTH		N/m	300	ASTM D6496
CBR BURST	STRENGTH	N	≥ 2500	ENISO12236
	ELONGATION	%	≥ 20
PERMEABILITY		m/s	≤3 x 10^-11	ASTM D5084
INDEX FLUX(q10)		(m³/m²)/s	≤2.7X10^-9	ASTM D5887
HYDRATED INTERNAL SHEAR STRENGTH @10kPa PRESSURE		kPa	≥ 35	ASTM D6243
EDGE SEALING		Treated
ROLL SIZE (LENGTH x WIDTH)		30M X 5M or tailored

Product Characteristic: Lower permeability, Self sealing for puncture and cracks, Long term service span, Higher internal shear strength and static puncture strength

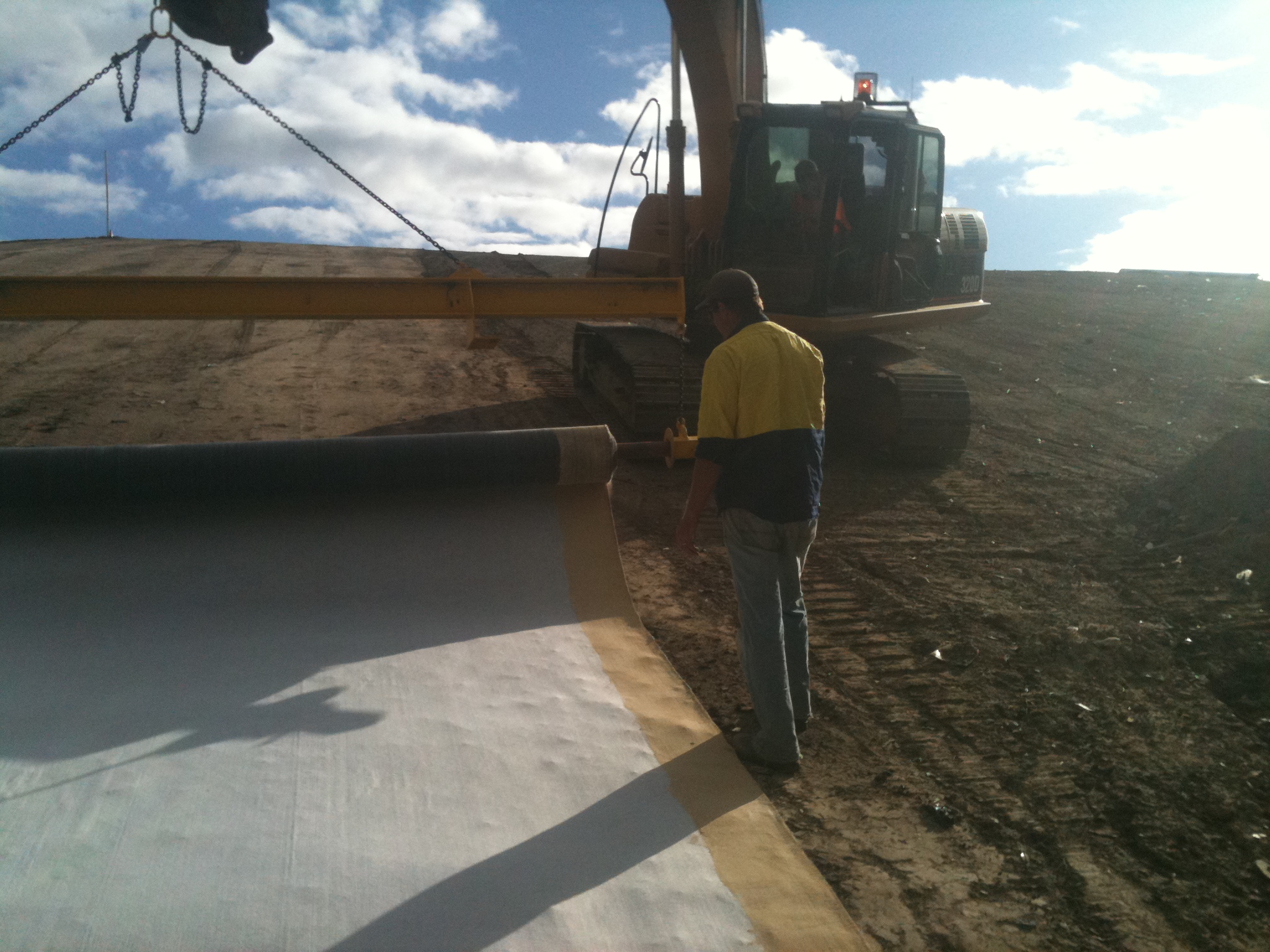

Application area: Road embankment, Steep slope in landfill , river embankment and dam etc., lining system on coarse base site
